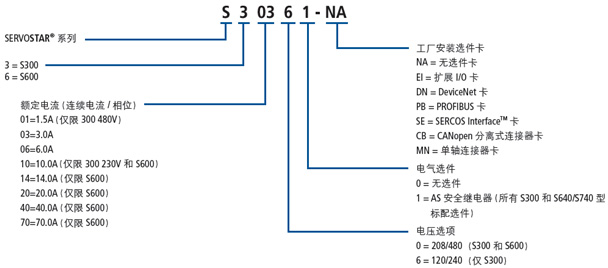

S600驱动器型号说明
|
Rated data |
DIM |
601 |
603 |
606 |
610 |
614 |
620 |
640 |
670 |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rated supply voltage |
V~ |
3 x 208V-10% ... 480V+10%, 60Hz 3 x 230V-10% ... 480V+10%, 50Hz |
|||||||||||
|
Rated installed power for S1 operation |
kVA |
1 |
2 |
4 |
7 |
10 |
14 |
30 |
50 |
||||
|
Rated DC link voltage |
V= |
260...675 |
|||||||||||
|
Rated output current (RMS value, ± 3 %) |
A RMS |
1.5 |
3 |
6 |
10 |
14 |
20 |
40 |
70 |
||||
|
Peak output current (max. 5s, ± 3 %) |
A RMS |
3 |
6 |
12 |
20 |
28 |
40 |
80 |
140 |
||||
|
Continuous power regen circuit (RBint) |
W |
80 |
80 |
200 |
200 |
200 |
200 |
- |
- |
||||
|
Continuous power regen circuit (RBext) max. |
kW |
0.5 |
0.5 |
1.5 |
1.5 |
1.5 |
1.5 |
6 |
6 |
||||
|
Peak power regen circuit (RBext) max. |
kW |
21 |
21 |
21 |
21 |
21 |
21 |
45 |
70 |
||||
Sizes for 300mm Switchgear Cabinets
|
Type |
601 / 603 / 606 / 610 |
614 |
620 |
640 /670 |
|---|---|---|---|---|
|
Height |
275 mm |
275 mm |
275 mm |
345 mm |
|
Width |
70 mm |
100 mm |
120 mm |
250 mm |
|
Depth |
265 mm |
265 mm |
265 mm |
300 mm |
|
Depth with connectors |
273 mm |
273 mm |
273 mm |
325 mm |
