MPS50SL 机械轴承丝杠平台 | MPS50SL Mechanical-Bearing Ball-Screw Linear Stage | 交叉滚柱轴承滚珠丝杠驱动直线定位平台

The MPS50SL is a compact, high-performance linear positioning stage that is perfect for the confines of the laboratory while providing the high reliability required in a production environment. It is the ideal choice for measurement, testing, accurate alignment and component assembly in space-constrained applications.

特点规格

Mechanical Specifications

Model			MPS50SL-025	MPS50SL-050
Travel			25 mm	50 mm
Accuracy	1.0 mm/rev Ball Screw	Standard	±3.0 μm	±4.0 μm
	1.0 mm/rev Ball Screw	HALAR⁽¹⁾	±1.5 μm	±1.5 μm
	0.5 mm/rev Lead Screw	Standard	±4.0 μm	±6.0 μm
	0.5 mm/rev Lead Screw	HALAR⁽¹⁾	±2.0 μm	±2.5 μm
Resolution	1.0 mm/rev Ball Screw		0.1 μm	0.1 μm
Resolution	0.5 mm/rev Lead Screw		0.1 μm	0.1 μm
Repeatability (Bidirectional)⁽¹⁾	1.0 mm/rev Ball Screw		±0.75 μm	±0.75 μm
Repeatability (Bidirectional)⁽¹⁾	0.5 mm/rev Lead Screw		±1.0 μm	±1.0 μm
Straightness			±2.0 μm	±3.0 μm
Flatness			±2.0 μm	±3.0 μm
Maximum Speed	1.0 mm/rev Ball Screw	DC Motor	5 mm/s	5 mm/s
	1.0 mm/rev Ball Screw	SM Motor	1 mm/s	1 mm/s
	0.5 mm/rev Lead Screw	DC Motor	2.5 mm/s	2.5 mm/s
	0.5 mm/rev Lead Screw	SM Motor	0.5 mm/s	0.5 mm/s
Load Capacity⁽²⁾	Horizontal		5 kg	5 kg
	Side		5 kg	5 kg
	Vertical		2.5 kg	2.5 kg
Stage Mass			0.85 kg	0.9 kg
Material			Anodized Aluminum Body

With Aerotech controllers.
Payload specifications are single-axis system.
Excessive duty cycle may impact stage accuracy.
Specifications are for single-axis systems measured 25 mm above the tabletop.

Electrical Specifications

Model		DC Motor (Standard and VAC)	SM Motor (Standard and VAC)
Drive System		DC Brush Servomotor with 14:1 Gearbox	24 VDC Bipolar Stepper Motor with 43:1 Gearbox
Feedback		512 lines/rev Rotary Encoder	N/A
Electronic Resolution	1.0 mm/rev Ball Screw	0.0348 μm	0.0484 μm @ 480 steps/rev Motor Resolution
Electronic Resolution	0.5 mm/rev Lead Screw	0.0174 μm	0.0242 μm @ 480 steps/rev Motor Resolution
Maximum Bus Voltage		48 VDC	48 VDC*
Limit Switches		5 V, Normally Closed	5 V, Normally Closed

*With Aerotech control system.

Recommended Controller

Model		DC Motor and SM Motor
Multi-Axis	A3200	Npaq/Npaq MR/Ndrive MP
Multi-Axis	Ensemble	Ensemble LAB /Epaq/Epaq MR/Ensemble MP
Single Axis	Soloist	Soloist MP

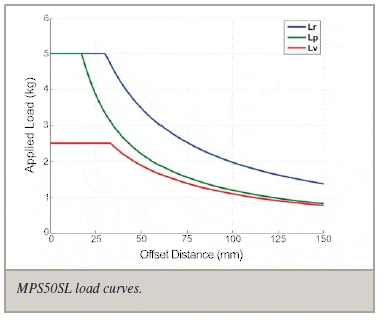

MPS50SL Load Curves

Dimensions

MPS50SL
MPS50SL Mounting Plates
MPS50SL Mounting Bracket

Ordering Information

MPS50SL Series Drive-Screw Stage

Option	Description
-025	25 mm travel stage with drive screw and limits
-050	50 mm travel stage with drive screw and limits
