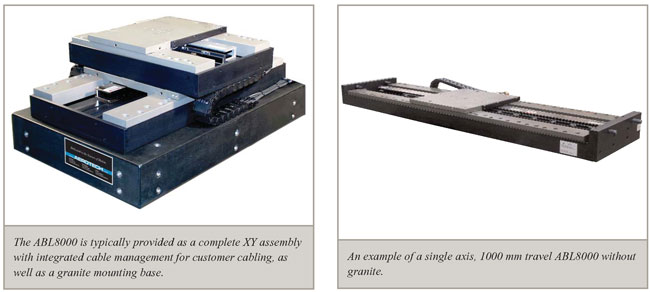

ABL8000空气轴承直线平台非常适合尖端制造业，特别是在半导体和数据存储行业，要求定位公差超越传统滚珠丝杠和机械轴承定位系统的能力。ABL8000空气轴承平台专为满足这些需求而设计，具有air-on-air空气对空气预紧，极高的刚性和优秀的几何特性。

ABL8000 Specifications

Model			ABL80020	ABL80030	ABL80040	ABL80050	ABL80075	ABL80100
Total Travel(1)			200 mm	300 mm	400 mm	500 mm	750 mm	1000 mm
Accuracy(2)	LN Standard		±5.0 μm				±6.0 μm	±7.0 μm
	LT Standard		±8.0 μm	±11.5 μm	±14.0 μm	±15.75 μm	±18.5 μm	±20.0 μm
	HALAR(3)		±0.5 μm		±0.75 μm		±1.0 μm
Bidirectional Repeatability(2)			±0.2 μm			±0.3 μm	±0.4 μm
Straightness(2)			±0.4 μm	±0.75 μm	±1.5 μm	±2.0 μm	±3.0 μm	±4.0 μm
Flatness(2)			±0.4 μm	±0.75 μm	±1.5 μm	±2.0 μm	±3.0 μm	±4.0 μm
Feedback			Noncontact Linear Encoder (LN or LT) or Laser Interferometer
Pitch			2 arc sec	3 arc sec	4 arc sec	5 arc sec	7.5 arc sec	10 arc sec
Roll			2 arc sec	3 arc sec	4 arc sec	5 arc sec	7.5 arc sec	10 arc sec
Yaw			2 arc sec	3 arc sec	4 arc sec	5 arc sec	7.5 arc sec	10 arc sec
Maximum Speed(4)	LN		1.2 m/s
	LT		2 m/s
Maximum Acceleration			2 g (No Load)
Maximum Force, Continuous(5,6)	-SC		110.5 N (-P Motor Option)
	-LC		197.2 N (-P Motor Option)
Load Capacity(7)	-SC	Horizontal	70 kg
		Side	30 kg
	-LC	Horizontal	120 kg
		Side	50 kg
Operating Pressure(8)			517-551 kPa
Air Consumption(9)	-SC		36 SLPM per Axis
	-LC		58 SLPM per Axis
Moving Mass	-SC		10 kg
	-LC		16 kg
Stage Mass	-SC		55 kg	62 kg	70.5 kg	78.5 kg	98 kg	116.5 kg
	-LC		70 kg	77 kg	85.5 kg	93.5 kg	113 kg	131.5 kg
Material			Aluminum
MTBF			30,000 Hours

1. When mounting the ABL8000 in an XY configuration, the maximum upper axis length is 400 mm.
2. Certified with each stage.
3. Available with Aerotech controllers.
4. Maximum speed based on stage capability; maximum application velocity may be limited by system data rate and system resolution.
5. Thermal limitations of positioning stage with respect to performance may limit continuous force output.
6. Force may be limited by amplifier output.
7. Maximum load based on bearing capability; maximum application load may be limited by acceleration requirements.
8. To protect air bearing against under-pressure, an in-line pressure switch tied to the motion controller/amplifier ESTOP input is recommended.
9. Air supply must be clean, dry to 0°F dew point and filtered to 0.25 μm or better; recommend nitrogen at 99.9% purity.
10. Specifications are for single-axis systems, measured 25 mm above the tabletop. Performance of multi-axis systems is payload and workpoint dependent. Consult factory for multi-axis or non-standard applications.

Electrical Specifications

Drive System	-SC	BLM-142-A
	-LC	BLM-264-A
Feedback	LN	Incremental Encoder; 4 μm Fundamental Period
	LT	Incremental Encoder; 20 μm Fundamental Period
Electronic Resolution		See signal period options on Order Information
Maximum Bus Voltage		80 VDC
Limit Switches		5 V, Normally Open
Home Switch		Near Center

Recommended Controller

Multi-Axis	A3200	Ndrive MP/Ndrive CP/Ndrive HLe/Npaq MXR
	Ensemble	Ensemble MP/Ensemble CP/Ensemble HLe/Epaq
Single Axis	Soloist	Soloist MP/Soloist CP/Soloist HLe

• ABL8000-specs
• abl8000-specs2

Dimensions

• ABL8000-SC
• ABL8000-LC

Ordering Information

Ordering Example

ABL80

030

-SC

-M

-S

-NC

-LN30AS

-SINGLE-CMS

Ordering Options

Series	Travel	Carriage	Mounting and Grid Pattern	Motor	Limits	Encoder Resolution	Options
ABL80	020 030 040 050 075 100	-SC -LC	-M -U	-P -S	-NC -NO	-LNxxAS -LTxxAS	-SINGLE-CMS -SINGLE-CUST.HOSE -SINLGE-CUST.CABLE -SINGLE-CUST.CABLE & HOSE -XY-CMS -XY-CUST.HOSE -XY-CUST.CABLE -XY-CUST.CABLE & HOSE

ABL8000 Series Linear Air-Bearing Stage

Option	Description
ABL80020	200 mm (8 in) travel linear air-bearing stage with linear motor and limits
ABL80030	300 mm (12 in) travel linear air-bearing stage with linear motor and limits
ABL80040	400 mm (16 in) travel linear air-bearing stage with linear motor and limits
ABL80050	500 mm (20 in) travel linear air-bearing stage with linear motor and limits
ABL80075	750 mm (30 in) travel linear air-bearing stage with linear motor and limits
ABL80100	1000 mm (40 in) travel linear air-bearing stage with linear motor and limits

Carriage

Option	Description
-SC	250 mm (10 in) length carriage (single-axis or y-axis use only)
-LC	400 mm (16 in) length carriage (required for x-axis in XY configuration)

Note: When mounting the ABL8000 in an XY configuration, the maximum upper axis length is 400 mm.

Mounting and Grid Pattern

Option	Description
-M	Metric dimension mounting pattern and holes
-U	English dimension mounting pattern and holes

Motor

Option	Description
-P	MT-P magnet track
-S	MT-S magnet track

Limits

Option	Description
-NC	Normally-closed end of travel limit switches (standard)
-NO	Normally-open end of travel limit switches

Standard Linear Encoders

Option	Description
-LT20AS	Linear encoder for ABL80020; amplified sine output
-LT30AS	Linear encoder for ABL80030; amplified sine output
-LT40AS	Linear encoder for ABL80040; amplified sine output
-LT50AS	Linear encoder for ABL80050; amplified sine output
-LT75AS	Linear encoder for ABL80075; amplified sine output
-LT100AS	Linear encoder for ABL80100; amplified sine output

High-Accuracy Linear Encoders

Option	Description
-LN20AS	High-accuracy linear encoder for ABL80020; amplified sine output
-LN30AS	High-accuracy linear encoder for ABL80030; amplified sine output
-LN40AS	High-accuracy linear encoder for ABL80040; amplified sine output
-LN50AS	High-accuracy linear encoder for ABL80050; amplified sine output
-LN75AS	High-accuracy linear encoder for ABL80075; amplified sine output
-LN100AS	High-accuracy linear encoder for ABL80100; amplified sine output

Options

Option	Description
-SINGLE-CMS	Cable management system for single-axis applications
-SINGLE-CUST.HOSE	Single CMS; 0.25 inch customer hose
-SINGLE-CUST.CABLE	Single CMS; one customer cable
-SINGLE-CUST.CABLE & HOSE	Single CMS; one customer cable and 0.25 inch hose
-XY-CMS	Cable management system for X-Y assembly; order with each axis
-XY-CUST.HOSE	XY CMS; customer hose
-XY-CUST.CABLE	XY CMS; customer cable
-XY-CUST.CABLE & HOSE	XY CMS; customer cable & hose
