Aerotech 的 AXR 集成两轴旋转组件提供高速加工能力用于复杂的三维几何工件。精确对齐系统允许在一个半球表面精确定位。多种框架尺寸，直驱或齿轮驱动选项提供了广泛的承载能力。

● 多种配置，支持不同的负载和精度的要求
● 集成旋转接头用于真空或空气激活工具
● 高速偏转轴提供转速高达1000 rpm
● 高负载的齿轮传动或高速直驱倾斜轴配置
● 可选密封可以防止空气中的微粒进入系统
● 刹车可用于在无动力状态下限制转台的运动

直驱偏转轴

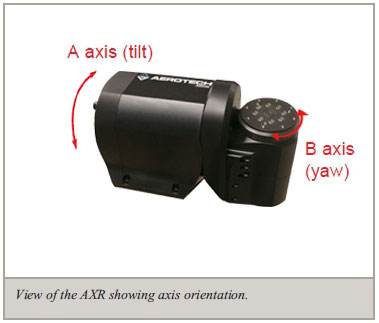

All AXR series rotary combinations feature a direct-drive yaw (B) axis. Direct-drive motors exhibit significantly higher throughput and maintenance-free operation when compared to gear- and screw-driven technology. With peak rotation speeds of up to 1000 rpm, the AXR is capable of supporting high-speed machining processes. A high-resolution encoder enables the axis to run at extremely slow speeds while maintaining excellent velocity regulation and positioning accuracy.

高容量倾斜轴
The AXR has both direct-drive and gear-driven tilt (A) axis configurations to meet the performance requirements of your specific application. The direct-drive version provides the highest possible operating speed and accuracy for demanding applications. A modular counterbalance system and different yaw mounting heights are available to balance offset loads. The tilt axis can be equipped with a brake to hold axis position when power is removed. For large load applications, the gear-drive units provide significantly higher continuous torque output while the drive mechanism limits motion in the power-off state. The precision anti-backlash gearing enables this higher torque output while still maintaining excellent accuracy and repeatability performance.

物料搬运
The AXR comes standard with an integral rotary union that provides a single pneumatic control signal to the yaw-axis tabletop for customer supplied air- or vacuum-actuated tooling. The AXR can also be outfitted with a 3-jaw manual chuck for maximum part-holding flexibility.

可扩展的产品解决方案
With both direct-drive and gear-driven platforms, various yaw table locations, a scalable counterbalance, standard pneumatic feed-through, and an optional 3-jaw chuck, the AXR can be configured to meet the requirements of most two-axis rotary assemblies.
